Bioclimatic Pergola

The BIOCLIMATIC pergola invented by SOLISYSTEME is an original and exclusive concept that offers you a new living space. Your terrace becomes a true extension of your interior, for an outdoor lifestyle. The temperature, freshness or intensity of the sun can be modulated according to every need.

Discover our full range of pergolas, to live each hour and every season to the maximum and transform it into a unique moment to enjoy alone or to share with a friend.

TECHNICAL FEATURES

The ADARTE SOLISYSTEME pergolas are composed of extruded aluminum profiles and dedicated mechanical elements and all the screws are in stainless steel. The adjustable louver system consists of an all-aluminum openable roof, operated by a winch or motor, and it is also possible to install it flat or sloping (max 40°). The design of the pergolas is clean, classic and timeless. Custom designed and continuously improved in design for over 20 years, our pergolas represent the excellence of reliability and require minimal maintenance. The pergola with adjustable slats is a patented roof system that combines functionality and aesthetics. A perfect compromise between awning and veranda, it is composed of aluminum louvers that are oriented simply, manually or with special motors. The technology allows to protect and optimize the outdoor spaces: it regulates the light, creates a pleasant ventilation during the summer and protects from the weather throughout the year.

  • Available in over 500 colors;
  • recyclable materials;
  • 5 year guarantee for aluminum (system and structure);
  • 2 year warranty for the mechanisms;
  • extruded aluminum profiles of the first 6060 casting;
  • stainless steel screws;
  • thermo-painted aluminum components to guarantee the best resistance to atmospheric agents and UV rays;
  • Qualicoat and Qualimarine label;
  • profile thickness 2 mm;
  • 2.5 mm louver thickness;
  • minimum slope required to guarantee the natural discharge of rainwater 8 mm / m;
  • winch or motor control (IP65-24V);
  • rainwater drainage tested up to 230 mm/h;
  • wind resistance, climatic tested up to 180 km/h;
  • maximum projection 6165 mm;
  • maximum width of the module 4 m;
  • maximum area per module 24 m2;
  • rotation of the louvers from 0 to 165°;
  • accessories: side locks, curtains and windows, integrated LED lighting, heating lamps and fairleads;
  • rain / sun / wind sensor.

THE ADARTE ADJUSTABLE LOUVERS PERGOLA IS A PATENTED ROOFING SYSTEM THAT COMBINES FUNCTIONALITY AND AESTHETICS

Its «Bioclimatic» technology will offer you protection and optimal use of your outdoor space allowing you to instantly adjust sunlight, creating a refreshing ventilation in the event of high temperatures or sheltering from the weather (rain, snow and wind). Perfect compromise between the awning and the veranda, the aluminum louvers orient themselves manually or with a remote control.

4 ESSENTIAL FUNCTIONS IN 1 PRODUCT ONLY

Orientamento lamelle pergole per protezione - Adarte Outdoor Format

PROTECTION

Protects from harmful sunlight and offers cover from poor weather condition

Orientamento lamelle pergole per ventilazione - Adarte Outdoor Format

Aeration

Provides ventilation to prevent hothouse heat buildup whilst retaining shade

Lamelle pergole eco compatibile - Adarte Outdoor Format

Regulation

Regulates the temperature of adjoining rooms by controlling sunlight intensity and direction

Orientamento lamelle pergole per luminosità - Adarte Outdoor Format

Luminosity

Adjusts the intensity of the sunlight to enable enjoyment of low-sun

I PLUS

SOLISYSTEME provides its customers with a wide range of standard structures and also offers the possibility to design their own custom-made pergolas. They can be leaning or self-supporting. They can be integrated or placed above any type of existing structure (aluminum, wood, steel, concrete). Therefore, they can be placed in any existing or new building architectural context.

LIGHT MANAGEMENT AND SHADOWS The adjustable louvers allow protection from solar radiation while maintaining the underlying luminous space.

NATURAL VENTILATION Slightly open, the louvers favor the recycling of air preserving a shaded space avoiding the greenhouse effect.

Terraces, winter gardens, spa, patio, poolside, outdoor kitchen, your bioclimatic pergola becomes a real room. Despite being outdoors, the space created is habitable. Adaptable to all architectural configurations, both in renovation and under construction. SOLISYSTEME contributes to the enhancement of the property and fits perfectly into the bioclimatic design path of the HQE and BBC of current homes.

  • Manual or motorized louvers orientation: it is possible to orient the louvers through a simple winch or thanks to a remote control connected to a silent motor.
  • Associated with a sensor, the pergola does not fear rain or wind. The slat cover system can automatically adapt to weather conditions.
  • Colors of the roof and of the structure: a wide range of colors available on request, to adapt perfectly to your exterior.
  • LED lighting: enjoy your pergola all night thanks to the LEDs integrated in the structure.
  • Stickers: customization kits, our stickers to adapt to your decorative tastes.
  • Lateral closures and glass walls: for optimal protection, provide your side closing pergola against the sun, the wind or simply as a visual barrier.
  • Heating: you have your own pergola with an auxiliary heater for an even warmer atmosphere.

ECO-SUSTENIBILE Aluminum is a material that lends itself to a wide range of applications and re-use possibility of re-use, thanks to its properties, it can be modeled with all processing communities, more easily than most other metals, so it is a material widely used for consumer products with a low energy cost. Its recovery and recycling, in addition to avoiding the use of bauxite, saves 95% of the energy required for the product from the raw material: to obtain 1 kg of aluminum from bauxite, 14 kWh is required, while to get 1 kg of new aluminum from the used one only 0.7 kWh of energy.

ECO-COMPATIBLE The SOLISYSTEME pergola classified as SOLAR SHIELD will enjoy tax benefits. The tax breaks consist of a deduction from the IRPEF or from the IRES, granted granted for the implementation of measures to improve the level the level of energy efficiency of the existing buildings where there is already a heating system. Eligible for tax deductions are natural persons, professionals, companies and businesses who pay for energy efficiency improvements on existing buildings, on their parts or on existing real estate units of any cadastral category. The deductions are granted if the costs have been incurred for the following interventions:

  • reduction of energy requirements for heating the whole building general renovation;
  • improvement of the thermal performance of the building envelope with the construction of a coat (through insulation of slabs, walls or replacement of windows or parts thereof);
  • installation of solar thermal panels;
  • replacement of winter air conditioning systems (condensing boilers, heat pumps, heat pump water heaters, heat pump water heaters).

The insulation occurs through the insertion inside the polystyrene strips. EPS (Sintered Expanded Polystyrene) sintered polystyrene is a rigid, light weight material derived from petroleum and composed exclusively of carbon and hydrogen atoms.

  • EXCELLENT RESISTANCE TO HUMIDITY. EPS is permeable to water vapor, so it is breathable, but impermeable to water. This feature prevents mold from forming inside buildings and environments isolated with EPS.
  • DURATION. The characteristics of the EPS do not change over time. The constancy of the performances required of EPS is thus guaranteed.
  • BEHAVIOR IN FIRE. EPS is a combustible material (it ignites at about 450 ° C), but in the self-extinguishing type the special additives contained reduce its flammability and flame spread, which ceases when the cause of ignition ceases. The self-extinguishing EPS is classified as a Euroclass E product – hardly flammable, with a distinctive AE or RF signature.
  • EXCELLENT ACOUSTIC INSULATION CAPACITY. By insulating the system it is possible to reduce by about 70% the sound energy generated by the impact of rain on the slats.
  • ENVIRONMENTAL SAFETY AND RECYCLABILITY. EPS is not fertile ground for the development of bacteria or other microorganisms. It is generally possible to recycle or otherwise dispose of EPS waste without problems. It is also non-toxic and inert, ie it does not transfer substances that are harmful to air, water or soil.

The CE marking is mandatory for all products for which there is a community directive, it is made by the manufacturer of a regulated product in the European Union, which declares by means of the declaration of conformity or performance for construction products, that the product complies with the safety requirements, foreseen by the applicable community directives or regulations. The bioclimatic pergola with adjustable slats SOLISYSTEME complies with:

  • to the requirements of the Construction Products Directive 89/106 / EC and of the Appendix ZA of the UNI EN 13561 standard;
  • to the essential safety requirements of the Machinery Directive 2006/42 / EC;
  • wind resistance: Technical Class 4.

La marcatura CE è obbligatoria per tutti i prodotti per i quali esiste una direttiva comunitaria, è realizzata dal fabbricante di un prodotto regolamentato nell’Unione Europea, il quale dichiara per mezzo della dichiarazione di conformità o di prestazione per i prodotti da costruzione, che il prodotto è conforme ai requisiti di sicurezza, previsti dalle direttive o regolamenti comunitari applicabili.
La pergola bioclimatica a lamelle orientabili SOLISYSTEME è conforme:

  • ai requisiti della Direttiva Prodotti da Costruzione 89/106/CE e dell’Appendice ZA della norma UNI EN 13561;
  • ai requisiti essenziali di sicurezza della Direttiva Macchine 2006/42/CE;
  • resistenza al vento: Classe Tecnica 4.

PLUS

SOLISYSTEME provides its customers with a wide range of standard structures and also offers the possibility to design their own custom-made pergolas. They can be leaning or self-supporting. They can be integrated or placed above any type of existing structure (aluminum, wood, steel, concrete). Therefore, they can be placed in any existing or new building architectural context.

LIGHT MANAGEMENT AND SHADOWS The adjustable louvers allow protection from solar radiation while maintaining the underlying luminous space.

NATURAL VENTILATION Slightly open, the louvers favor the recycling of air preserving a shaded space avoiding the greenhouse effect.

Terraces, winter gardens, spa, patio, poolside, outdoor kitchen, your bioclimatic pergola becomes a real room. Despite being outdoors, the space created is habitable. Adaptable to all architectural configurations, both in renovation and under construction. SOLISYSTEME contributes to the enhancement of the property and fits perfectly into the bioclimatic design path of the HQE and BBC of current homes.

  • Manual or motorized louvers orientation: it is possible to orient the louvers through a simple winch or thanks to a remote control connected to a silent motor.
  • Associated with a sensor, the pergola does not fear rain or wind. The slat cover system can automatically adapt to weather conditions.
  • Colors of the roof and of the structure: a wide range of colors available on request, to adapt perfectly to your exterior.
  • LED lighting: enjoy your pergola all night thanks to the LEDs integrated in the structure.
  • Stickers: customization kits, our stickers to adapt to your decorative tastes.
  • Lateral closures and glass walls: for optimal protection, provide your side closing pergola against the sun, the wind or simply as a visual barrier.
  • Heating: you have your own pergola with an auxiliary heater for an even warmer atmosphere.

ECO-SUSTENIBILE Aluminum is a material that lends itself to a wide range of applications and re-use possibility of re-use, thanks to its properties, it can be modeled with all processing communities, more easily than most other metals, so it is a material widely used for consumer products with a low energy cost. Its recovery and recycling, in addition to avoiding the use of bauxite, saves 95% of the energy required for the product from the raw material: to obtain 1 kg of aluminum from bauxite, 14 kWh is required, while to get 1 kg of new aluminum from the used one only 0.7 kWh of energy.

ECO-COMPATIBLE The SOLISYSTEME pergola classified as SOLAR SHIELD will enjoy tax benefits. The tax breaks consist of a deduction from the IRPEF or from the IRES, granted granted for the implementation of measures to improve the level the level of energy efficiency of the existing buildings where there is already a heating system. Eligible for tax deductions are natural persons, professionals, companies and businesses who pay for energy efficiency improvements on existing buildings, on their parts or on existing real estate units of any cadastral category. The deductions are granted if the costs have been incurred for the following interventions:

  • reduction of energy requirements for heating the whole building general renovation;
  • improvement of the thermal performance of the building envelope with the construction of a coat (through insulation of slabs, walls or replacement of windows or parts thereof);
  • installation of solar thermal panels;
  • replacement of winter air conditioning systems (condensing boilers, heat pumps, heat pump water heaters, heat pump water heaters).

The insulation occurs through the insertion inside the polystyrene strips. EPS (Sintered Expanded Polystyrene) sintered polystyrene is a rigid, light weight material derived from petroleum and composed exclusively of carbon and hydrogen atoms.

  • EXCELLENT RESISTANCE TO HUMIDITY. EPS is permeable to water vapor, so it is breathable, but impermeable to water. This feature prevents mold from forming inside buildings and environments isolated with EPS.
  • DURATION. The characteristics of the EPS do not change over time. The constancy of the performances required of EPS is thus guaranteed.
  • BEHAVIOR IN FIRE. EPS is a combustible material (it ignites at about 450 ° C), but in the self-extinguishing type the special additives contained reduce its flammability and flame spread, which ceases when the cause of ignition ceases. The self-extinguishing EPS is classified as a Euroclass E product – hardly flammable, with a distinctive AE or RF signature.
  • EXCELLENT ACOUSTIC INSULATION CAPACITY. By insulating the system it is possible to reduce by about 70% the sound energy generated by the impact of rain on the slats.
  • ENVIRONMENTAL SAFETY AND RECYCLABILITY. EPS is not fertile ground for the development of bacteria or other microorganisms. It is generally possible to recycle or otherwise dispose of EPS waste without problems. It is also non-toxic and inert, ie it does not transfer substances that are harmful to air, water or soil.

The CE marking is mandatory for all products for which there is a community directive, it is made by the manufacturer of a regulated product in the European Union, which declares by means of the declaration of conformity or performance for construction products, that the product complies with the safety requirements, foreseen by the applicable community directives or regulations. The bioclimatic pergola with adjustable slats SOLISYSTEME complies with:

  • to the requirements of the Construction Products Directive 89/106 / EC and of the Appendix ZA of the UNI EN 13561 standard;
  • to the essential safety requirements of the Machinery Directive 2006/42 / EC;
  • wind resistance: Technical Class 4.

A series of tests were carried out in the wind tunnel on a bio-climatic pergola SOLISYSTEME. The pergola was placed in the center of the Jules Verne wind tunnel, under the rain nozzles. The rain was produced by a network of pipes with calibrated dispersion nozzles (conical dispersion model).

To reproduce the rain effect as uniformly as possible on the pergola, the pipe network was placed at the ceiling level. In the piping system, a flow from 10 to 23 m / h, allows to produce a precipitation with intensity from 100 to 230 mm / hr.
Various rain intensities were produced in 5 minutes without reaching the limits of the system. The drainage test was performed for rainfall intensity ranging from heavy (130 mm / h) to very heavy (170 mm / h) and also very severe (230 mm / h).

PERSONALIZATIONS

Our company has the ability to customize the product according to the real needs of the customer by proposing specific solutions that integrate perfectly with the architectural part, allowing to perform the technical function of sun protection. Practical and functional structures of easy customization and with different decorative proposals.

In addition to having the ability to perform non-standard works, our pergolas can also be customized in shapes and colors: we are able to give a specific character to the products, making them even more special and unique. For this reason we guarantee customers not only a unique and high quality product but also customized to your taste and need.

COLORS AND FINISHES

In addition to standard paints (RAL series, sublimated or photocopier) it is possible to reproduce custom paints and finishes. The thermal coating of the aluminum components guarantees the best resistance to atmospheric agents and UV rays.
Qualicoat and Qualimarine labels are guarantees that allow the installation of our pergolas in any context. The treated materials are subjected to an accurate production and laboratory check, the processing takes place in compliance with the QUALICOAT product specifications.

The CLASSE 2 finishes guarantee greater durability and resistance of the paint to atmospheric and chemical agents: the thickness of the paint layer obtainable with this technology is significantly higher than that obtainable with liquid paint (easily exceeding 100 micrometers) and mechanical characteristics ( hardness, elasticity) can be very high.

RAL STANDARD

White 9010 glossy/matte
Ivory 1013 glossy/matte
Anthracite Gray 7016
Corten Sablè SK 16

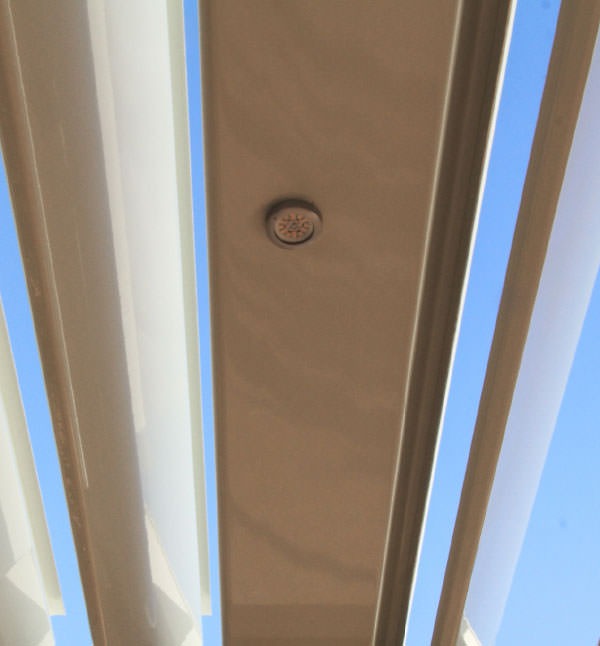

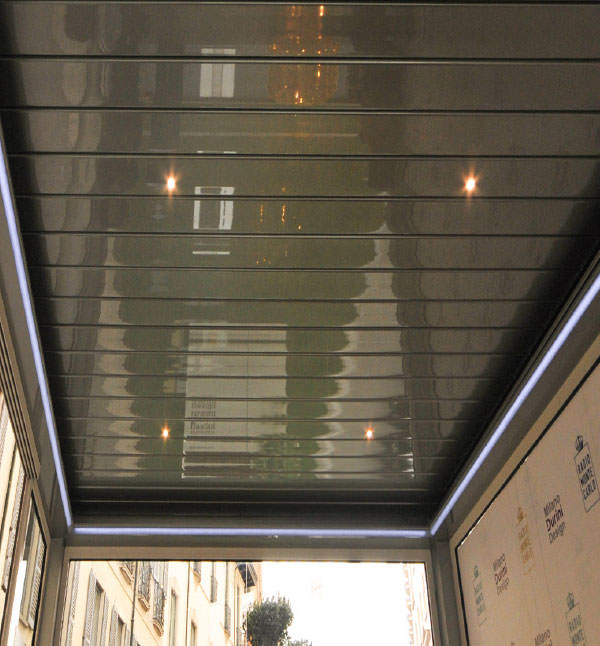

LIGHTING

It’s possible to integrate lighting systems into our systems and structures. The use of LED lights (RGB or WHITE) allows to have two different lighting types: a homogeneous LED Strip and a punctual LED Spot.

OFF SIZE

To enhance all the environments, we have the possibility of creating asymmetrically shaped roofs, in situations of out-of-square and in places with irregular, leaning or self-supporting perimeters. It is possible to create non-standard structures.


For fixed parts, different types of compensation are provided in order to properly balance out-of-squares, with the benefit of a perfect frontal alignment:

Aluminium sheet (sp. 10/10);
insulated panels (sp. 30mm);
alveolar polycarbonate (single or double layer);
laminated glass (not supplied).
